A print bottom liner is included with all 15' x 30' above ground swimming
pool kits. Full print overlap or UBD pool liner can be added to any pool
kit (scroll down for additional liner choices). You can also substitute for a liner that can be installed up to 6-1/2'
deep. The deep-end overlap liners are available in the Royal marble which
can make the pool 2 feet deeper for a total depth of 6-1/2 feet of water. The extra depth is for swimming
only No Jumping or Diving is Allowed. All liners have a 15yr warranty.
|
| Mighty Sun Collection | Memphis Collection | Memphis 2 Collection |
| 15' x 30' in-stock liners for Mighty Sun collection above ground pools - Everest - Rushmore - Midland - Elite | |||
![]() |
![]() |
![]() |
|
| Marble Bottom included 20 mil overlap |
Blue Illusion add $75 25 mil overlap |
Blue Ocean add $125 25 mil UBD |
6-1/2' Royal 20 mil overlap $100 |
| 15' x 30' in-stock pool liners for Memphis collection above ground pools - Memphian - Supreme | |||
![]() |
|||
| Pebble Bottom 20 mil overlap |
Ocean Reef add $100 20 mil overlap |
Delta Glimmer add $125 20 mil UBD |
Palazzo Tile add $125 25 mil JBD |
| 15' x 30' in-stock pool liners for Memphis 2 collection above ground pools - Silver Oak - Shadow | ||||
![]() |
![]() |
![]() |
![]() |
![]() |
| New-Pebble bottom 20 mil overlap |
Full prism add $50 20 mil overlap |

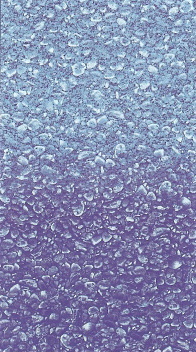

Pebble Beach add $50 20 mil overlap |
Stonecrest add $125 20 mil UBD |
Blue 6-1/2' deep 20 mil overlap $100 |
| You can substitute the included liner for a liner that can be installed up to 6-1/2' deep. The deep-end overlap liners are available in solid blue and solid marble which can make the pool 2 feet deeper for a total depth of 6-1/2 feet of water. The extra depth is for swimming only No Jumping or Diving is Allowed. |

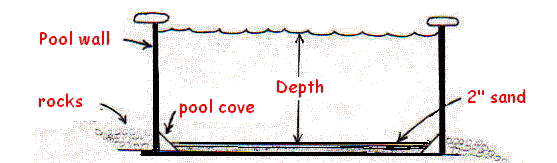

| Flat bottom above ground pool actual depth |
![]() |
| 48" pool wall = approximate 44"deep . . . 52" pool wall = approximate 48" deep |
| There is two types of deeper pool excavation |

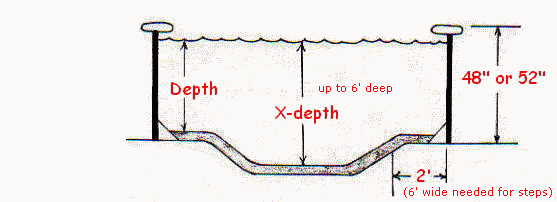

| The dished bottom pool that is deeper in the middle with a 2' or larger walk around ledge. Be sure to leave enough flat area for the pool ladder or for wedding cake steps. The X - depth can be any depth up to 6-1/2 feet deep. The extra depth is for swimming only. It is obtained by digging 2' deep (or desired depth) in the middle with a gradual slope towards the safety walk around ledge. |
![]() |
The hopper bottom pool is deeper on one end with a flat shallow play area and a safety walk around the deeper end. The Royal marble liner can be installed as a flat bottom liner or as a non-diving deeper liner up to 6-1/2' deep |
|
![]() ![]() |
|
| All above ground pools are NON-DIVING as classified by NSPI standards |
|
|||||||||||
|
Click here for inground diving pools
