Inground Swimming Pool Brace System |
| Steel swimming pool braces -vs- Polymer swimming pool braces |

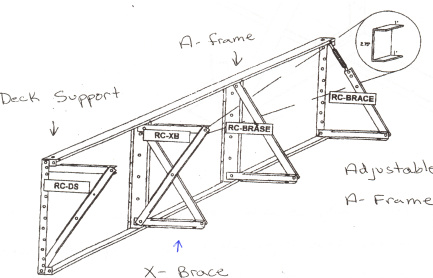

 Adjustable A-frame brace |

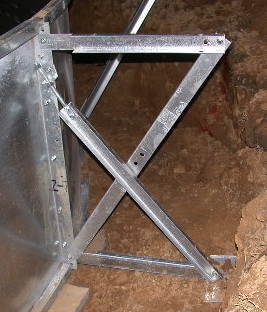

 Adjustable A-frame with optional deck support |
| Our standard adjustable A-frame brace is included with all steel swimming pool kits. It is especially recommended for all rectangle and straight wall swimming pools. The adjusting brace allows for some realignment of the swimming pool wall after the concrete footing is poured to straighten the wall if needed. The corner braces are optional on rectangle swimming pool kits. The adjustable A-frame brace can be combined with the optional deck support system for all steel pool kits. The corner braces are included with the A-frame deck support option. | |

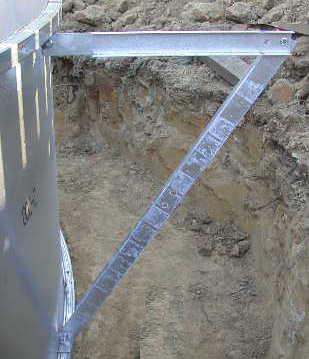

 Deck Support |

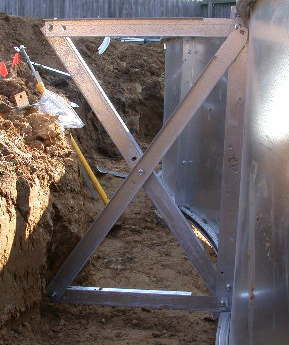

 X-Brace Deck Support |
| The deck support brace is optional and not necessary in most areas. The deck support is a good option when using bricks or stones around the deck if a concrete deck will adjoin the brick or stone coping. The non-adjustable X- brace deck support system is an economical option for all radius or free form swimming pools like the Kidney, Deer Creek and Oddyssey. | |

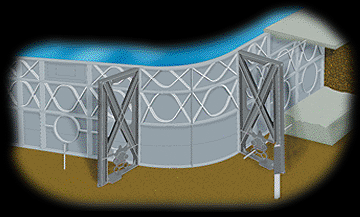

| The polymer X-brace with deck supports option is included with the polymer swimming pool kits. It includes X-braces every 4' or 6' and it includes the corner braces. The kit comes with zinc hardware or add the nylon hardware with polymer pins option. The polymer pins make installing the polymer swimming pool kit easier and faster to align the panels. | |
 |
| Hydra Pools Alignment Coping encapsulates the entire top surface of wall panels providing precise alignment. Hydra Brace deck support bracing is designed to transfer deck weight loading to vertical wall and anchor stake. Stake-Lok assures positive leveling, locking and aligment. | |
 |
| Click for swimming pool gallery | Click for swimming pool installation |
