Swimming Pool Heaters and Heat Pumps |
| Jandy | MiniMax | Ray Pak | Sta Rite | Hayward | Heat Pump | Heater Sizing | Solar Blankets | Solar Systems | Liquid Solar |
Prices includes free shipping & home delivery fees to most areas (see shipping map) Price includes for natural gas heaters up to 3000' altitude or propane heaters up to 5000' altitude. high altitude heaters available in LJ 325 and LJ400 natural gas by request |
 The Jandy Legacy pool heater is a technologically advanced unit that is
energy efficient, lightweight and extremely reliable. The Legacy uses a
ceramic combustion chamber that provides more efficient operation and allows
the heater to be smaller and lighter than most other pool heaters. The
Legacy self-cleaning hot surface ignition and sealed controls ensure reliability
in extreme hot and cold weather. The unit’s copper heat exchanger with
patented Flo-thru baffles makes the Legacy efficient, which will lower
your gas bills while extending your swimming season. The advanced Legacy
control features a digital display that allows different temperature settings
for pool and spa. In addition, these digital controls are programmable
to operate your pump and filter system with built-in freeze protection.
This heater is so advanced that it is self-diagnostic, which cuts down
on service calls and expense. Precise electronic ignition saves money on
gas and is also trouble free, even in high wind areas. |
|
| LZ owners manual |  |
| 125,000 BTU | $1195 |
| 175,000 BTU | $1349 |
| 250,000 BTU | $1495 |
| 325,000 BTU | $1679 |
| 400,000 BTU | $1859 |
|
Built for dependability and efficiency, The LG model features a field-proven
millivolt ignition (regular pilot) system and electronic thermostat. The
new LJ model features a liquid crystal digital display with programmable
pump control, dual temperature controls, built-in freeze protection and
heater diagnostics. High-performance insulation and efficient operation
make this heater an excellent value. Ceramic fiber combustion chamber provides
more efficient operation and permits lighter & smaller design. Natural
gas or Propane in-stock
|
|
 LG owners manual |
 LJ Digital Control LJ owners manual |
| 175,000 BTU | $1395 |
| 325,000 BTU | $1695 |
| 400,000 BTU | $1895 |
 The LXi’s fan- assisted combustion provides consistent and efficient heat
production, even in windy conditions. No more flame out! Plus, the LXi
meets all low NOX standards. Durable, corrosion-resistant polymer headers
and low profile design make installation of the LXi quick and easy. Electric
spark ignition ensures start-up every time – no pilot light that can blow
out. State-of-the-art digital controls make the LXi easy to use. The controls
have built-in diagnostics that alert you in the event of a service problem.
The diagnostics will also guide a repairman in servicing your heater quickly,
saving you money. It even tells you when your pool needs backwashing! These
advanced controls use easy touch buttons and message prompts to help you
program your unit quickly and effortlessly. Not only is the LXi the most
advanced heater you can buy, it is also very reliable. The unit comes in
either natural gas or propane models. |
|
| LX owners manual | |
| 250,000 BTU | $1795 |
| 400,000 BTU | $2095 |
|
||||||||||||

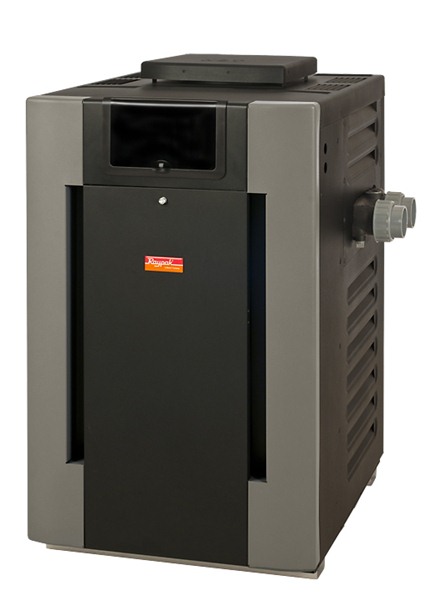

Ray Pak HeaterCapron® resin headers prevent rust stains from harming pool surface. Millivolt regular pilot MV manual or electronic pilot ignition Digital manual plumbs directly from provided 2" PVC threaded union. Completely field serviceable and High efficiency for economical operation natural gas or propane. 5 yr warranty |
||
| Heater Size | MV |
Digital |
| 200,000 BTU | $1549 | $1595 |
| 266,000 BTU | $1650 | $1725 |
| 333,000 BTU | $1875 | $1895 |
| 399,000 BTU | $2075 | $2125 |
|
|||||||||||

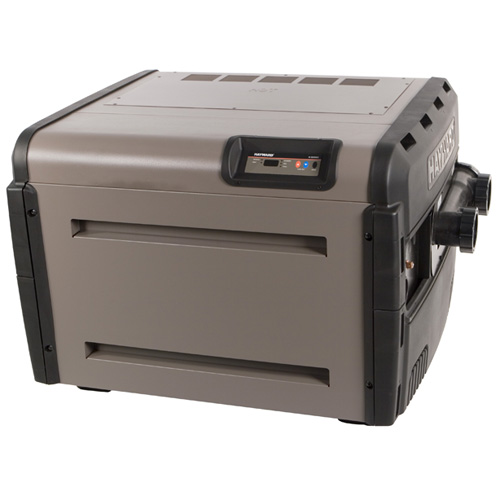

 The Hayward H-Series millivolt heater is the very best in heating technology for swimming pools and spas. Hayward H-Series heaters are all equipped with a Cupro Nickel Heat Exchanger for efficient heating and superior durability. It is ideal for salt-water based pool systems with a rust-resistant water path with polymer header assemblies, and a rapid-heat combustion chamber. H-Series heaters are easy to install and maintain. Perfect for above ground or small inground pools |
|
| Heater Size | |
| 150,000 BTU | $1345 |
| 200,000 BTU | $1575 |
| 250,000 BTU | $1675 |
 While all Hayward H-Series heaters are energy-efficient, the Universal H-Series Low NOx heater has an 83-84 percent industry-leading thermal efficiency and complies with all current California and Texas air quality emission standards. The low NOx emission makes it a perfect choice for the environmentally concerned pool owner. |
|
| Heater Size | |
| 150,000 BTU | $1425 |
| 200,000 BTU | $1735 |
| 250,000 BTU | $1775 |
| 300,000 BTU | $1950 |
| 350,000 BTU | $1995 |
| 400,000 BTU | $2175 |
|
|||
| Heat Pump Size | |
||
| 1100E - 109K BTU, up to 28,000 gal | $2695 | ||
| 1300 - 125K BTU, up to 35,000 gal | $2959 | ||
| 1300 H/C - 125K BTU (heats and cools) | $3359 | ||
|
|||

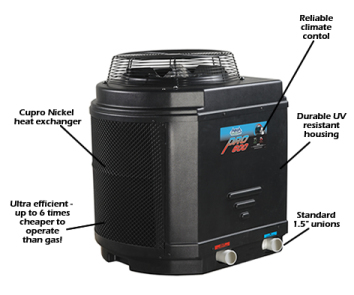

| Aqua Pro 600 | |
||
| 60K BTU, up to 21,000 gal | $1929 | ||
Hayward HeatPro Heat Pump
|
|||
| HP21104T - 110 btu | $2995 |
||
| HP21404T - 140 btu | $3395 |
||
|
|||
| Heater Size | |
||
| 100,000 BTU | $2950 | ||
| 115,000 BTU (heat & cool) | $3829 | ||
| 131,000 BTU (heat & cool) | $4329 | ||
| What size heater do I need? |
| Pool Size | Recommended heater size |
| 16' x 32' | 250,000 |
| 18' x 36' | 325,000 |
| 20' x 40' | 400,000 |
| The heater size should be based on how warm you want the pool or spa water and how fast you want the pool to warm up. If you plan to keep the pool warm all the time a smaller heater will work. The most economical use is to over size the heater and quickly warm up the pool water before you are ready to use it. | |
| Sizing formula | example |
| 1 - determine what temperature you want for the water ( 78 for pools - 100 for spas) | 78 - desired water temp |
| 2 - subtract the average spring and fall air temperature for the period you will use the heater | 58 - average temp |
| 3 - equals the desired temperature rise | 20 - temp rise needed |
| 4 - use the chart below to match the needed rise with the degree per hour rise in temperature for the heater size | |
| size | 12' x 24' | 14' x 28' | 16'x32' | 18' x 36' | 20' x 40' |
| 200,000 | 40 | 35 | 30 | 25 | 15 |
| 250,000 | 45 | 40 | 35 | 30 | 25 |
| 325,000 | - | 45 | 40 | 35 | 30 |
| 400,000 | - | - | 45 | 40 | 35 |
| size | 12' x 24' | 14' x 28' | 16'x32' | 18' x 36' | 20' x 40' |
| 200,000 | 1-1/2 | 1-1/4 | 1 | 3/4 | - |
| 250,000 | 2 | 1-3/4 | 1-1/2 | 1-1/4 | 3/4 |
| 325,000 | 3 | 2 | 2 | 1-1/2 | 1 |
| 400,000 | 3-1/2 | 2-3/4 | 2-1/2 | 1-3/4 | 1-1/4 |
| Spa in Gallons | |||||||
| size | 200 | 300 | 400 | 500 | 600 | 800 | 1000 |
| 200,000 | 20 | 30 | 43 | 54 | 1 hr | 80 | 100 |
| 250,000 | 15 | 23 | 30 | 45 | 45 | 1 hr | 75 |
| 325,000 | 12 | 17 | 23 | 29 | 35 | 46 | 1 hr |
| 400,000 | 9 | 14 | 19 | 23 | 28 | 37 | 47 |
| Raypak Electric |
 |
| When electricity is the energy choice spa/hot tub electric heaters furnish sustained heat to provide the maximum benefits of hydrotherapy...including stress reduction, relaxation and arthritis/pain relief. performance-proven - with corrosion-free, 100% copper and bronze waterways. Two compact models - 5.5kw and 11kw - built to last |
|
||||||
| We recommend the use of a solar blanket with all heaters. A solar blanket will hold the heat in the water especially at night. Stopping the pool water circulation at night will also minimize heat loss. We suggest a freeze protector pool timer in area subject to freezing temperatures. |
