#WG1049AVDGRPAK2

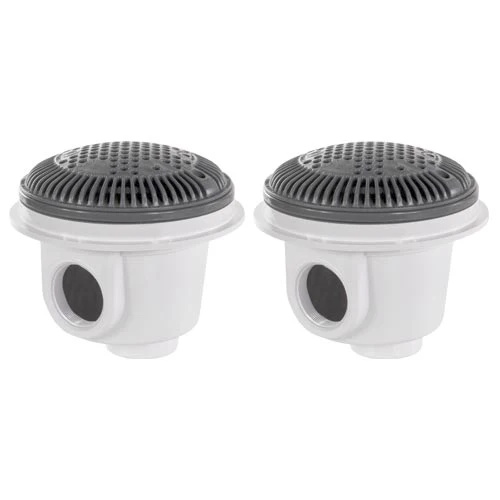

Hayward Dark Gray Dual 2" Main Drains For Vinyl Liner pools

Hayward suction outlets set the standard for quality and value. All Hayward WG series suction outlets and replacement covers are VGB compliant and are tested to ASME A112 9.8b-2009 and ANSI/APSP-16 standards as well as meeting CPSC requirements.

• Vinyl/Fiberglass inground pool application

• 8” Suction Outlet

• 2” (FIP) Side Outlet / 1-1/2” (FIP) Bottom Plug

• • Dark Grey in color

Specifications:

• Cover Dimension: 8” diameter
  Cover Open Area: 8.1 sq in
• Pipe Size Side Outlet: 2” FIP
  Pipe Size Bottom Plug: 1-1/2” FIP
• Round lid
  125 GPM Floor (horizontal)
  * 72 GPM wall (vertical)
