#WG1049AVPAK2

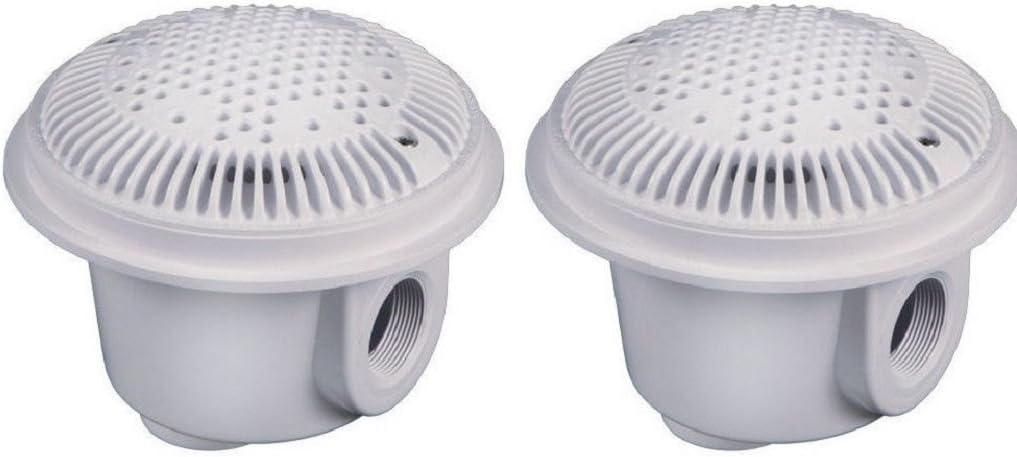

Hayward White Dual 2" Main Drains For Vinyl Liner pools

Hayward suction outlets set the standard for quality and value. All Hayward WG series suction outlets and replacement covers are VGB compliant and are tested to ASME A112 9.8b-2009 and ANSI/APSP-16 standards as well as meeting CPSC requirements.

• Vinyl/Fiberglass inground pool application
• 8" Suction Outlet
• 2" (FIP) Side Outlet / 1 _" (FIP) Bottom Plug
• White in color
• Specifications
  * Cover Dimension: 8" diameter
  * Cover Open Area: 8.1 sq in
  * Pipe Size Side Outlet: 2" FIP
  * Pipe Size Bottom Plug: 1 _" FIP
  * Round lid
  * 125 GPM Floor (horizontal)
  * 72 GPM wall (vertical)
• Sold in sets of two
