Inground Swimming Pool Coping

Scroll down to view bullnose coping, flat track cantilever coping that is used with bullnose pool bricks and cantilever coping that is created using foam forms.

Bullnose Swimming Pool Coping

Bullnose coping allows the concrete deck to be poured up to the swimming pool edge. The aluminum coping can be painted any color. The bullnose coping is the most popular style used on vinyl liner pools. It works well with the concrete deck installation. The coping does not have to be removed to replace your pool liner.

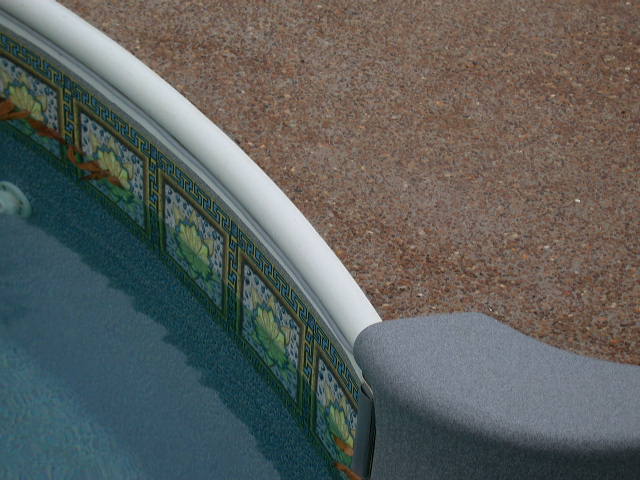

bullnose coping with concrete deck


bullnose coping before concrete

The flat-faced white bullnose coping is shipped with select radius pools.

For pricing options and to purchase Bullnose Coping click here




Flat Track Cantilever Coping

Mounts to the top of the pool wall. The liner snaps into the track and allows for bullnose bricks or stones to be set over the swimming pool edge. The bricks or stones do not have to be removed in order to replace the swimming pool liner. Deck supports are recommended if a concrete deck will be poured up to the bricks edge.



coping a frame


CAR-801-513 Cantilever Coping 8' Straight Section (for straight walls) $15

CAR-801-518 Cantilever Coping 8' Notched Section (for corners or freeform pools) $29

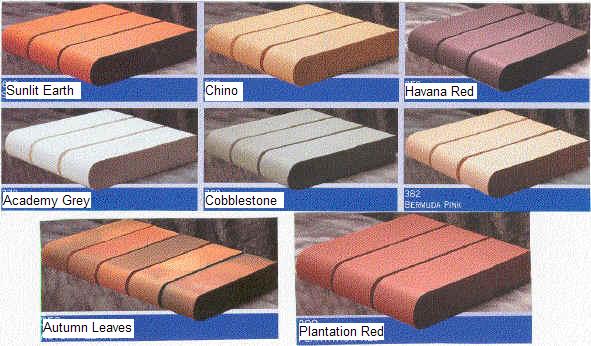

Swimming Pool Coping Bricks

Our bullnose bricks offer distinctive design flexibility and add enduring beauty and durability in any application. These bricks are low in absorption, easy to clean and require little maintenance. Our bullnose bricks are 9" in length and single ended with cored bodies.

Determine how many coping bricks you need for your pool:

You will need 3 bricks per foot of your pool perimeter plus up to an additional 20% for cutting corners.
Formula: (Pool Perimeter x 3) x 20% = Total Bricks Needed

364 Bricks/Pallet - Sold Per Pallet Only - 9" Single Bullnose/Cored Body $999 Purchase Bullnose Coping Bricks

Sunset Red Coping Brick Red Flashed Coping Brick Rose Tan Coping Brick Sterling Grey Coping Brick Brown Flashed Coping Brick
Sunset Red Red Flashed Rose Tan Sterling Grey Brown Flashed

Burgundy Coping Brick Light Iron Spot Coping Brick Medium Iron Spot Coping Brick Dark Iron Spot Coping Brick Bullnose Coping Brick Dimensions
Burgundy Light Iron Spot Medium Iron Spot Dark Iron Spot Brick Dimensions

click each image to enlarge it click images to enlarge (images are for color representation purposes and do not depict "cored" design)


Cantilever Coping

is made using foam forms.The cantilever forms allow the concrete deck to be poured on top of the flat track coping and over the swimming pools edge. The forms are removed after the deck is installed.

coping a frame

Shop Now for Inground Pool Deck Forms



Renovation Coping

We offer a full line of coping to meet virtually any of your pool renovation needs. We offer the coping from several of the major brands, to include Cardinal and Cinderella. We are able to offer this coping in indiviual pieces, however, we cannot guarantee any of this coping will match the size, color, profile, or shape of any existing coping you may have. Listed below are the styles we offer for your renovation project:


  CP-2P Pool Coping
  • Bullnose coping with liner track and alignment edge.
  • Available in white or grey powder coat.
  • Height from top of coping to mounting surface measures approximately 2-3/8".
  • Mounting surface width measures approximately 2".
Shop Now for CP-2P Inground Pool Coping

  CP-5 Pool Coping
  • Capstone double track coping with alignment edge.
  • Either track may be used for liner bead or top track for beaded winter cover/deck forms.
  • Height from top of coping to mounting surface measures approximately 3".
  • Mounting surface width measures approximately 2".
Shop Now for CP-5 Inground Pool Coping

  CP-6N Pool Coping
  • Deck mount coping with liner track and alignment edge.
  • Includes lock-on snap strip cover.
  • Height from top of coping to mounting surface measures approximately 1-1/2".
  • Mounting surface width measures approximately 5-1/2".
Shop Now for CP-6N Inground Pool Coping


  • Vertical mount coping with single liner track.
  • Smooth white high gloss finish.
  • Field bendable.
  • Height measures approximately 1".
  • Width measures approximately 1/2".


  • Vertical mount coping with single liner track.
  • Textured white powder coat finish.
  • Field bendable.
  • Height measures approximately 1-1/2".
  • Width measures approximately 1/2".


  • Horizontal mount coping with single liner track.
  • Smooth white high floss finish.
  • Height from top of coping to mounting surface measures approximately 3/8".
  • Mounting surface width measures approximately 1-1/4".


  • Horizontal mount coping with single liner track and alignment edge.
  • Textured white powder coat finish.
  • Height from top of coping to mounting surface measures approximately 3/8".
  • Mounting surface width measures approximately 1-7/8".


  • Horizontal mount coping with single liner track and alignment edge.
  • Textured gray powder coat finish.
  • Mud lip atop bead receiver.
  • Longer alignment lip.


  • Horizontal mount coping with single liner track and alignment edge.
  • Textured white powder coat finish.
  • Height from top of coping to mounting surface measures approximately 3/8".
  • Mounting surface width measures approximately 3".


  • Horizontal mount coping with liner track, fiberoptic track, and alignment edge.
  • Smooth white high gloss finish.
  • Height from top of coping to mounting surface measures approximately 1".
  • Mounting surface width measures approximately 2".


  • Horizontal mount coping with liner track, deck form or fiberoptic track, and alignment edge.
  • Textured white powder coat finish.
  • Mounting surface width measures approximately 2".
