#160340

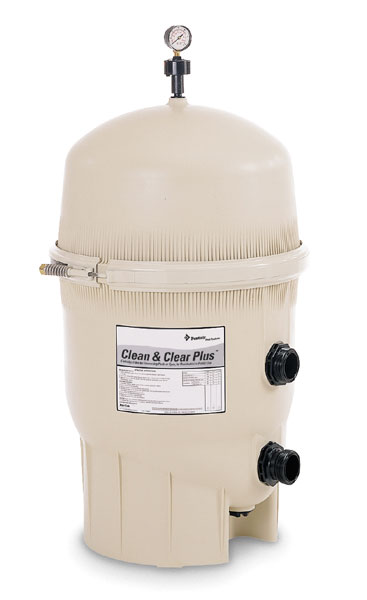

Pentair Clean & Clear Plus Cartridge Filter 320 Sq. Ft.

The Clean & Clear Plus cartridge filter combines high quality filter performance with minimum upkeep. This dependable design uses special filter elements to remove particles from your pool water... particles as small as 30 microns. (An average grain of beach sand is 1,000 microns!) The Pentair four-cartridge design provides maximum filter surface area to capture more dirt and extends time between cleaning. And cleaning is a breeze...simply open the top, remove the cartridges, hose them off, and your filter is ready to go again. Clean & Clear® Plus Filters have a corrosion resistant injection molded filter tank featuring superior strength and reliability. The cartridge assembly uses four easy to clean, non-woven, polyester cartridges. Each filter is supplied with a bulkhead union set for easy installation.

Technical Specifications
Model: CCP320
Dimen. Width: 21.5"
Dimen. Height: 43"

Performance Data
Effective Filtration Area: 320 ft.sq
Design Flow Rate: 120 GPM
Turnover 8 Hrs (Gal): 57,600
Turnover 10 Hrs (Gal): 72,000

Features:
*NSF listed
*Superior strength
*Large filter area for increased dirt capacity
*1-1/2 in., 100% drain clean-out port
*Continuous High Flow™ internal air relief
*Base and plumbing kits now available
*Injection molded tank
*Balanced hydraulic flow
*Tension Control™ clamp
*100% factory tested
*Black bulkhead unions
*High Flow manual air relief valve
