#W3S310S

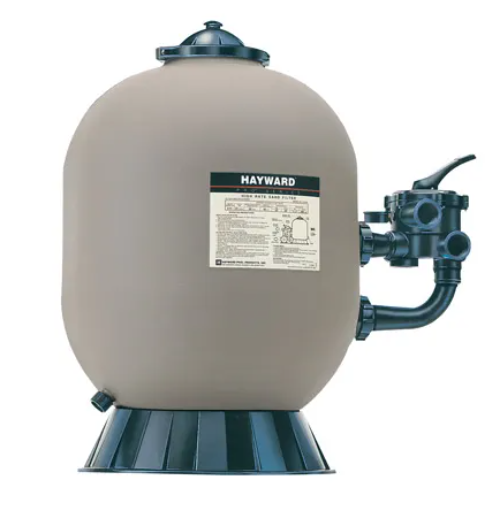

Hayward ProSeries 30" Side-Mount Sand Filter
ProSeries top-mount and side-mount sand filters utilize a precision engineered umbrella-fold self-cleaning lateral system to provide efficient flow and evenly distributed water for totally balanced backwashing and long lasting performance.
Features:
- Durable corrosion proof materials for dependable all weather performance
- Large pressure sand/water drain for rapid winterizing or servicing
- Top-mount models are available with 7-position or 6-position VariFlo control valve
- Side-mount models are available with 6-position VariFlo or 2-position slide valve
Specifications:
- Backwash Flow Rate 98 GPM
- Channel Open Line
- Design Flow Rate 98
- Drain Port Size 1.5"
- Effective Filtration Rate 4.91 SQFT
- Filter Type Sand
- Max Working Pressure 50 PSI
- Parts Warranty 3 Year
- Pressure Gauge Yes
- Sand Capacity 500lbs
- 10 Hour Turnover 58800 GPM
- 8 Hour Turnover 47040 GPM
Processing...
Fill out form below
No Questions asked yet! Ask the first question.
Installation Manuals
View installation manuals for Hayward ProSeries 30" Side-Mount Sand Filter.
