#R10C-L12-R1-WMP

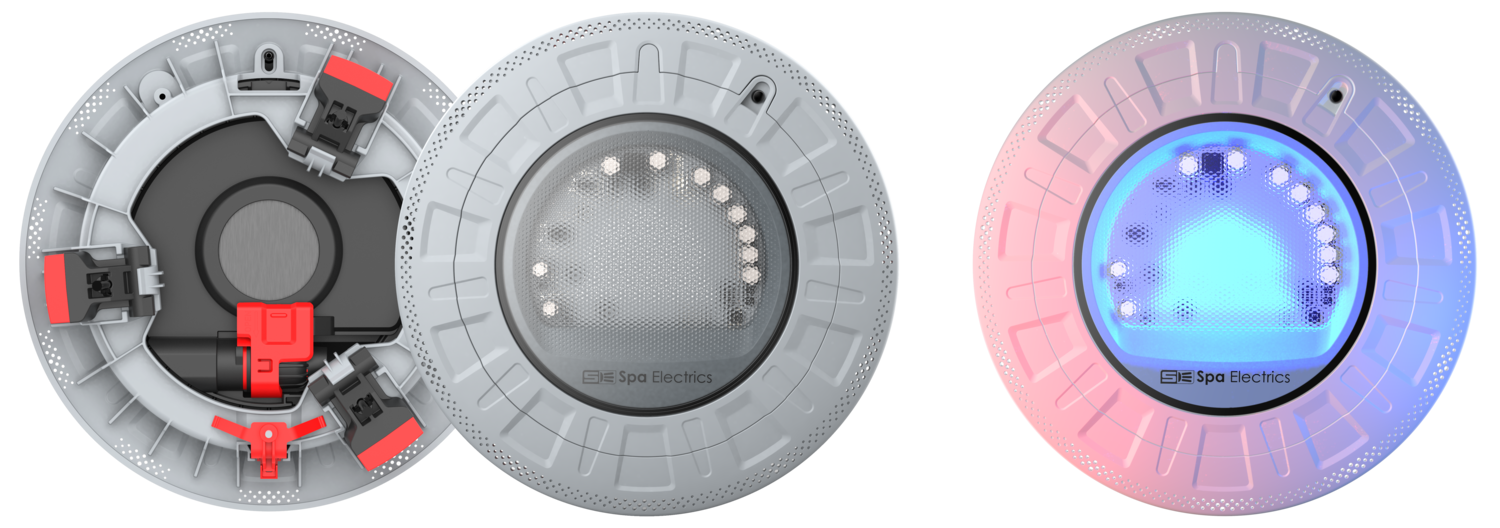

Spa Electrics R10 Retro-Fit Light for 10" Housings - White Faceplate
Universal 10” Concrete Replacement Pool Light
**IMPORTANT** Add Niche Ring if installing on Vinyl Liner Pool. (Click Here)

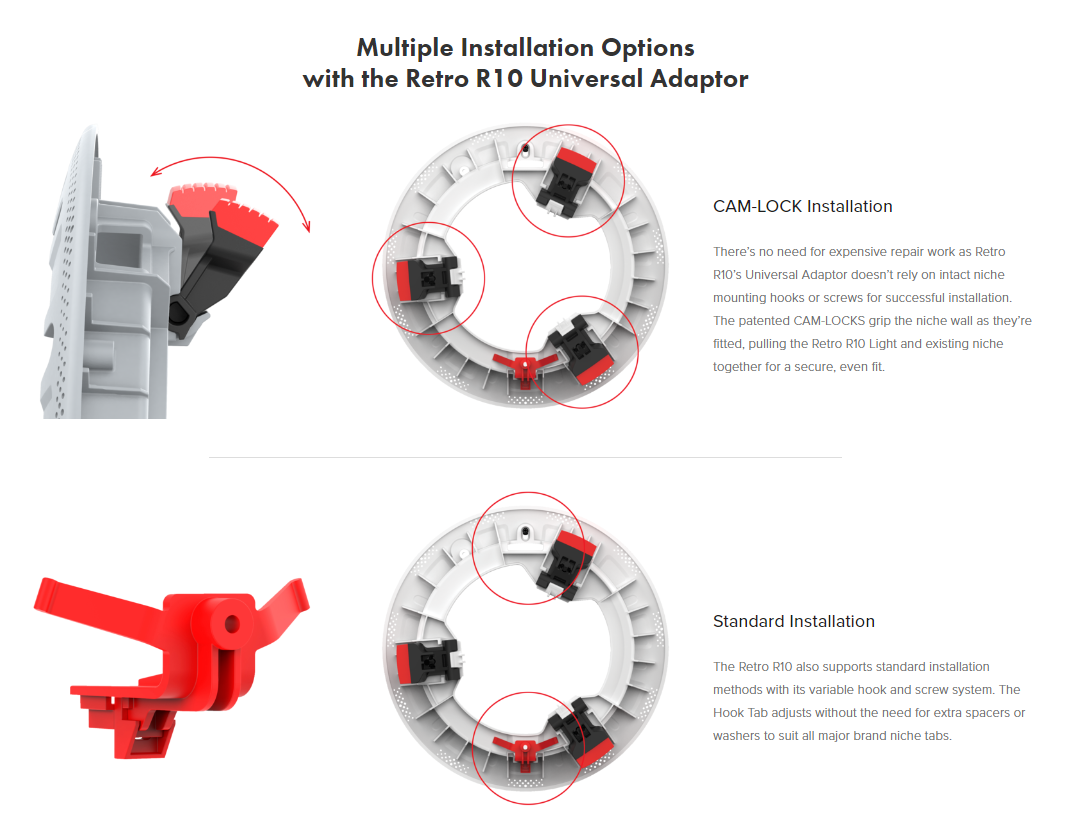

Designed to retro-fit all major brand 10” niches and pool controllers.
Retro-fitting a Pool light should take minutes, not hours. With the Retro Series R10 you can say goodbye to pulling cables through conduit forever! The Retro R10 makes retro-fit installation a quick & simple process. Its UL Listed Quick Connect Plug system attaches directly to the existing cable in the niche, saving time, money and allowing for light replacement when cables cannot be removed.
Extra Safe Low Voltage 12VAC
The UL Listed Quick Connect Plug power offers safe low voltage connection for all pool users as well as for future servicing. Simply install a transformer for conversion.
Technical Specifcations
- Light Source Ceramic Light Engine (LED)
- LED Colors White: 3000k Warm or 4000k Daylight, 3200 lumen
- Blue 1000 lumen
- MULTI PLUS RGB+W 3200 lumen
- MULTI PLUS Compatibility Wall Switch Operation and all major pool controller brands including: Pentair IntelliTouch®, Haward Omnilogic®, Aqualink®
- Niche Compatibility All major brand niches including: American®, Anthony®, CHD®, Hayward®, Hydrel®, Jandy®, PacFab®, Paragon®, Pentair®, Purex®, Sta-Rite®, Swimquip®
- Cable Compatability Up to 12AWG size
- IP Rating IPX8
- Installation Types Concrete
- Voltage 10.5 to 13 v AC
- Wattage 45 watts
- Ambient Operating Temperature 41 °F to +104 °F
- Transformer Requires 12V AC UL listed transformer. We recommend LVX Series Transformers
- Warranty 3 Year Manufacturers Warranty
