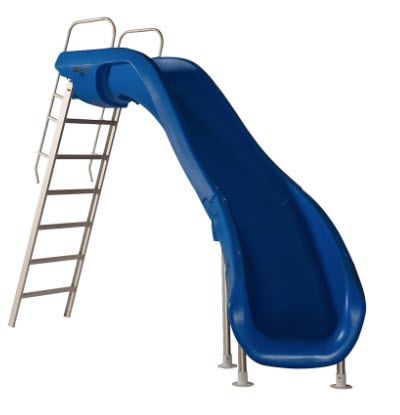

SR Smith Rogue2 Pool Slide
The new Rogue2 slide has a retro look with a thoroughly modern flume that makes this slide the new standard for backyard fun. The Rogue2 is designed for quick and easy assembly, and has an improved high volume water delivery system that can be plumbed through the pool's return line or connected to a garden hose.
- 8' in height (6'6" to seat)
- Available in right or left curved flume
- Accommodates sliders up to 250 lbs/113kg
- Wide flume with high walls
- Designed for quick, easy assembly
- Improved high volume water delivery system can be plumbed through the pool's return line or connected to a garden hose
- Can be surface or in-deck mounted to accommodate any pool (flange kit part # 75-209-5866) must be purchased separately if surface mounted)
- Intended for use on residential in-ground swimming pools only
Processing...
5 Questions asked on SR Smith Rogue2 Pool Slide
Fill out form below
No Questions asked yet! Ask the first question.
Yes, if it's being surface mounted (meaning added after the concrete has been poured). However, if the slide is being installed during new construction then it can be in deck mounted and the flange kit isn't needed.
The flange kit must be purchased separately. Search our website for part number 75-209-5866.
03/25/2019, 11:45:51 AM
Height: 8' (6'6" to seat), Flume is 9'3" in length. Required deck space: 10'7" x 8'5"
05/27/2020, 9:28:39 AM
Hi Nate, the flume is 9'3" in length.
06/11/2020, 11:06:05 AM
Pool water depth at the base of the slide should be at least 3’ (914 mm) deep, and at 4’6” (1.372 M) out from slide exit, should be at least 4’6” (1.372 M) deep.
The height of the slide runway exit above the water should be 20” (0.508 M) maximum. The distance between the slide centerline and the edge of other pool equipment should be at least 3’6” (1.067 M).
01/13/2021, 10:55:57 AM
The Rogue2 slide comes with the water delivery system components needed to connect it to your pool's plumbing as well as a garden hose adapter if this is not an option for your pool's set up.
02/08/2023, 2:49:46 PM
